The signal amplifier NS-5000GD is a dualband model that provides users with strong and reliable signals at two different frequencies – GSM 900 MHz and DCS 1800 MHz. The device is compatible with all the UK's and Irish operators. Among many benefits, one of the most prominent is the enhanced indoor coverage area for unsurpassed signal strength, which is 3 000 m2 (32 300 ft2). This coverage is suitable enough for large shopping malls, apartments, buildings, cafés, restaurants, big corporations and even undergrounds.
If your network operator also supports 3G at 900MHz and 4G at 1800MHz, the NS-5000GD will also improve data speeds at these frequencies.
Take a look below for the most notable reasons as to why you should buy it:
Automatic Level Control manages incoming signals based on the signal strength automatically.
Automatic Gain Control, manages incoming signals on the basis of signal fluctuation level.
Manual Gain Control, MGC, is ideal for users looking for advanced signal adjustments.
Shut-Off function prevents the device from getting damaged and turns it off in case of self-oscillation or excessive incoming signal.
CE and RoHS certificates ensure that the device si 100% safe for usage.
Now it is time to put an end to poor communication once and for all. Order this booster and enjoy uninterrupted voice calls with crystal clarity!
Up-link freq:880-915MHz & 1710-1785 MHz
Down-link freq:935-960MHz & 1805-1880 MHz
Up-link Gain:70 dB
Down-link Gain:75 dB
Power Output:23 dBm
Working t °C:-25/+55 °C
Humidity:5 - 95 %
Size (mm):210 x 145 x 44
Booster Weight:2.3 kg
Power supply:Input AC90~264V,output DC12V/3A
Download ManualDownload Datasheet
How it works
There is little surprise that this dual band repeater is one of the most popular ones among owners of large private houses, restaurants and hotels, as it has an extended indoor coverage area of 32 300 ft2. To ensure such a coverage, it is vital to install NS-5000GD in a proper way.

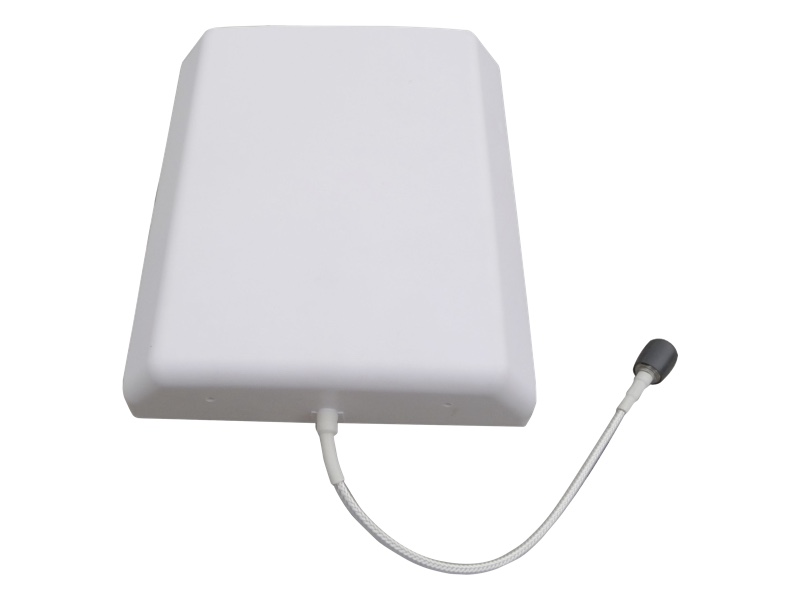

This booster kit has several elements. The main one is an amplifier box and two antennas while one should be placed outdoors, an appropriate place for the second one is inside the building. The indoor antenna is designed to be mounted on the ceiling in order to ensure quality distribution of the enhanced signal. If you need to have the amplified signal in rather remote rooms, it is necessary to upgrade the device with extra indoor antennas or splitters. All the elements of the kit are to be connected with coaxial cables. Among alternative models supporting two bands it's worth mentioning Nikrans NS-2500GD amplifier with GSM 3G 4G antenna that is suitable for French providers and other EU networks.
Leave a review
· Jeanne (Ireland) · Verified Buyer · 10-10-2021
This is the second time I’m buying here. The first booster was for my parents’ house, and now I decided to purchase one more for our office. Both devices work perfectly. The installation is so simple, especially with plenty of tutorials available on the net. Just in a minute everything started to work. I give five starts for the quality and for the service.
Dear Jeanne, thanks for your review. We are happy to know that you are satisfied with the product. With best wishes, the team of Mobile signal boosters.
This model is the best available option for the offered price. I've been using it for a month already, and I haven't noticed any downsides yet.
Hello Gregory, thanks for the review. We are glad to know that you are satisfied with the product. Wishing you all the best, sales department.
· George (United Kingdom) · Verified Buyer · 10-06-2021
Good amplifier for business
I’ve chosen this model as it has a large coverage capacity and works with all UK mobile operators. I’m satisfied with the result and I’ll recommend this device to my partners.
Dear George, we are glad to receive your feedback. Thank you for choosing our product. With best regards, the team of Mobile signal boosters.
· Adam Muller (Germany) · Verified Buyer · 03-05-2021
The booster works well. It has never shown any errors. Amplified the signal immediately after the installation, which, by the way, was rather easy. You only have to choose the right place for the external antenna where the signal from the base station will be maximum. I know that some people use special mobile applications for this, but I managed to do without it, as there still was a minimal signal.
Appreciated Adam, we are grateful for your review. Looking forward to your next visit. With best wishes, support team.
· Shell W. (Ireland) · Verified Buyer · 24-02-2021
This is my second dual band booster. The previous one was so useless that it was never possible to catch a stable signal in the trading mall. After the installation of this one, the visitors and the staff can safely talk on the phone whatever their operators are. It has even become possible to use messengers, for example, WhatsApp even allows you to transfer photos and videos, so the mobile Internet format has been improved significantly with this device. Although I thought that most likely the Internet would not be so stable, but I was mistaken, it turns out to be a nice bonus.
Dear Shell, thank you for sharing your opinion. We are glad to know that you are satisfied with the product. Regards, sales team.
· Mike P. (Ireland) · Verified Buyer · 04-01-2021
I didn’t like the mountings included in the standard kit. They weren’t reliable enough to mount the booster antennas well. So I had to buy some other fixators.
Dear Mike, thank you for sharing the review. Your opinion is very important for us. Wishing you all the best, sales team.
· Leo (France) · Verified Buyer · 24-10-2020
The booster ensured stable connection around the whole office building. We have strong GSM and fast internet. The booster is powerful and effective. It doesn’t need any technical maintenance during the working process. I’ve been using it for three months and have had no signal problems since then.
Appreciated Leo, we are grateful for your review. Keep on enjoying your purchase. Regards, support team.
We installed it in our entertainment center where we have a lot of visitors every day. That’s great that the booster works with different operators and supports two frequencies - GSM 900 MHz and DCS 1800 MHz. It is very simple and effective at the same time. It can work with 4G/LTE and it’s very important these days.
Hello Sally, thank you for sharing your review. We would be glad to see you at our store again. With best wishes, the team of Mobile-signal-boosters.
· Katarzyna (Poland) · Verified Buyer · 21-09-2020
The signal has become much stronger with the amplifier. I like the features of the booster. It has a shut-off function and automatic level control, so it’s safe and easy to use. It looks large in the pictures, but in reality it’s very compact.
Hi Katarzyna, thank you for leaving the review. We are happy to know that you are satisfied with the product. With best wishes, the team of Mobile-signal-boosters
· Olivia B. (Lithuania) · Verified Buyer · 04-09-2020
Cheaper than NS-5000GDW
This model is cheaper than NS-5000GDW, although they have one and the same coverage capacity. Works without any complaints! I see no difference!
Appreciated Olivia, this model differs from NS-5000GDW in the number of bands supported. NS-5000GD supports only two frequencies, while NS-5000GDW is a triband booster.
The model is powerful enough to provide a strong mobile signal around a large building. We’ve installed it in the parking lot, and the coverage there has increased from 2 bars to 5. The only issue is that is has no LCD screen, which makes the installation process a bit more time-consuming.
Hello Jane, we are glad to know that the quality of your mobile signal in the parking lot has increased. Sincerely yours, the team of Mobile-signal-booster
I was hesitating between this model and NS-5000GDW. But as the letter was a bit more expensive, I decided to buy NS-5000GD. The difference was in the fact that NS-5000GD doesn’t support 2100 MHz frequency for the transmission of 3G signal. Actually, now I regret about it. Id better have chosen NS-5000GDW, as I’ve installed the booster at the hotel which I own, and there are a lot of visitors, who want to have their 3G improved at 2100 MHz.
Dear Lily, thanks for leaving feedback. Please, feel free to contact us in case you need our help. With best wishes, sales department.
· Alex Lloyd · Verified Buyer · 12-06-2020
I join the positive reviews - everything is on top – the product itself, the delivery, and packaging. The repeater works perfectly, I’ve tried it inside my building, where the signal is a bit weak, but I am going to use it in my guest house, where the quality of mobile connection leaves much to be desired. It works with all British operators, which is undoubtedly a great plus! Thanks to the supplier! Recommended!
Dear Alex, thank you for the feedback. We would be glad to see you at our store again. Best regards, Support team.
· Brian J. · Verified Buyer · 23-05-2020
I bought it to improve poor signal in the entertainment center I own. It’s located inside a huge building, whose walls are too thick to let the mobile signal in. With the booster the reception is much better, without signal issues and disconnections.
Dear Brian, thank you very much for the review. We are looking forward to seeing you again at our store. Best regards, Support team.
· Andrew Granger · Verified Buyer · 29-03-2020
The device is really effective. The only thing to pay attention to when installing it – is the direction of the outdoor antenna. You should turn it to the nearest operator’s mast in order to catch any existing signal.
Dear Andrew, thank you for the feedback. Feel free to contact us anytime you need. Kindest regards, Support team.
· Ross L. · Verified Buyer · 05-02-2020
Everything is ok with the product. The supplier is one of the most reliable and trustworthy in the sphere of signal amplification. The result is very good, just as they promised me! The shipment was rather fast, just 4 days. I recommend this booster to everyone who wants to improve poor coverage inside large areas. It’s the best variant to choose, IMHO!
Dear Ross, thank you for the review. Your opinion is very important for us. Best regards, Support team.
· Harriet Turner · Verified Buyer · 04-01-2020
Found a scratch
When I was delivered an amplifier, I carefully looked at the device. Unfortunately, I found about a 7 cm scratch in a hard place to see. It's probably a manufacturing defect and I contacted the specialist. After thousand of apologies and 4 days, I got my excellent booster which operates absolutely awesome.
Dear Harriet, thank you for the review! We are sorry for the situation and hope that it will not reflect our future cooperation. Best wishes, Support team.
· Leo Lewis · Verified Buyer · 19-09-2019
A little expensive
I bought the booster for my restaurant. I must admit it's quite expensive even with free delivery, but it fully worth its value because the signal enhanced unbelievably and the download speed as well.
Hi Leo, thank you for the review and for the honest opinion which is very significant for us. Best wishes, Support team.
· Evie Harris · Verified Buyer · 21-08-2019
I can barely express how I'm satisfied with this model my husband purchased last month for our motel because (I don't know why) the 4g connection was aweful. And we had lots of complaints from guests. It's amazing that this little booster with practically invisible antennas fulfills well their functions and it's possible to serve the Internet and speak on the phone without interruptions even in the basement simultaneously. Moreover, it was ordered after 4 days since we'd paid for it and my husband installed the amplifier without external help. Great!
Dear Evie! Thank you for the review. We are glad to be aware of the signal was improved. Best regards, Support team.
· Ben M. · Verified Buyer · 08-08-2019
Actually, I couldn’t believe that the booster would be effective enough to ensure stable connection in the parking lot located underground. Fortunately, I was mistaken. The booster really works and works perfectly, without any problems.
Dear Ben, thank you for the feedback. We would be glad to see you again. Best regards, Support team.
· Peter Ling · Verified Buyer · 03-08-2019
Everything is OK
The order came to my place safe and sound. They sent me the whole booster kit, so I didn’t buy any extra-equipment or mountings. The installation wasn’t troublesome at all, everything was clear from the instructions provided in the manual. I’ve checked all the operators, they all work very well with this booster model. Thanks a lot to the supplier, wishing all the best, prosperity and more happy clients!
Dear Peter, Thank you very much for the review. We are so grateful to you for the worm wishes you have left. Kindest regards, support team.
· Hugh · Verified Buyer · 25-07-2019
I’m in love with this booster! It helped me to save my business and to stop losing clients. I installed it inside the office and now we work without being afraid of getting broke!
Dear Hugh, thank you for the feedback. We are happy to know that we managed to help you. Kindest regards, support team.
· William L. · Verified Buyer · 19-07-2019
I’ve already installed it, everything is fine, it works perfectly. In the places where I used to have no signal at all, I can enjoy stable mobile connection. It’s superb!
Dear William, thank you for the feedback. Keep on enjoying it! Kindest regards, support team.
· Greg · Verified Buyer · 14-07-2019
Good Dualband Model
If you are looking for a good dualband amplifier for bettering poor mobile coverage inside large buildings – you should buy this booster. Its indoor coverage area is not just large, it’s huge – about 3 000 m2. The device has an automatic signal control due to which it becomes possible to control the incoming ongoing signal. Next – you can choose between automatic and manual gain control, which is very convenient and good. I needed additional consultation regarding the installation of the device, so I called the company and they helped me a lot. Polite managers and careful staff are no less important than a good quality of product.
Dear Greg, thank you for the review. Your opinion means much to us. Best regards, support team.
· Adam F. · Verified Buyer · 10-07-2019
I have to admit that I am a mobile phone addict. But actually, who is not in the 21st century? I think that the main disadvantage in such situations is that you become angry every time you lose signal. I mean from time to time signal issues occur, and despite the fact that I am using one of the most reliable operators, I also face certain inconveniences which make me lose my temper. So to keep myself calmer, I installed a mobile phone signal booster, and fortunately it worked! Now EDGE and GPRS networks are stable inside my building and I have no signal problems any more. I can use my phone whenever I want without being afraid of disconnections.
Dear Adam, thank you very much for the feedback. We are happy to know that your problem has been solved. Best regards, Support team.
I liked the device because of its simplicity and safety. I spent only half an hour to install it. Before getting down to the set up, I looked into the user’s manual provided by Mobile-signal-boosters in the full kit and then I called their manager, who politely explained everything concerning the mounting of the antennas and the booster box itself.
As soon as you plug in the device, the system perfectly improves a weak signal inside the building. There are no more interruptions and disconnections during conversations, the audibility is good enough. Every person can benefit from a perfect connection thanks to the booster, as there are no limitations concerning the number of simultaneous users.
Personally I had to deal with displeased visitors, who stayed at my hotel and couldn’t make and receive calls, as well as use their mobile internet. Mobile signal problems caused a lot of inconveniences to me and my guests.
