Tri Band Mobile Signal Booster LCD-1000GDW

4.9
108 reviews

NEW

Image Tri Band Mobile Signal Booster LCD-1000GDW

Tri Band Mobile Signal Booster LCD-1000GDW image 1

Tri Band Mobile Signal Booster LCD-1000GDW image 2

Tri Band Mobile Signal Booster LCD-1000GDW image 3

Tri Band Mobile Signal Booster LCD-1000GDW image 4

Tri Band Mobile Signal Booster LCD-1000GDW image 5

Tri Band Mobile Signal Booster LCD-1000GDW image 6

Tri Band Mobile Signal Booster LCD-1000GDW image 7

Tri Band Mobile Signal Booster LCD-1000GDW image 8

Tri Band Mobile Signal Booster LCD-1000GDW image 9

Tri Band Mobile Signal Booster LCD-1000GDW image 10

Download Datasheet How to install mobile repeater

Providers:

Indoor coverage: 10800 ft²

3 Band GSM 3G 4G

£550

In stock

Need help?

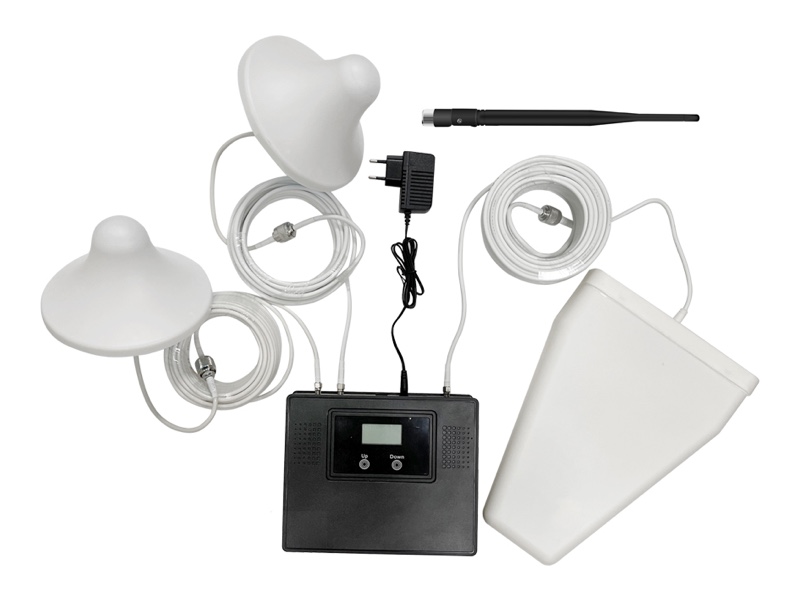

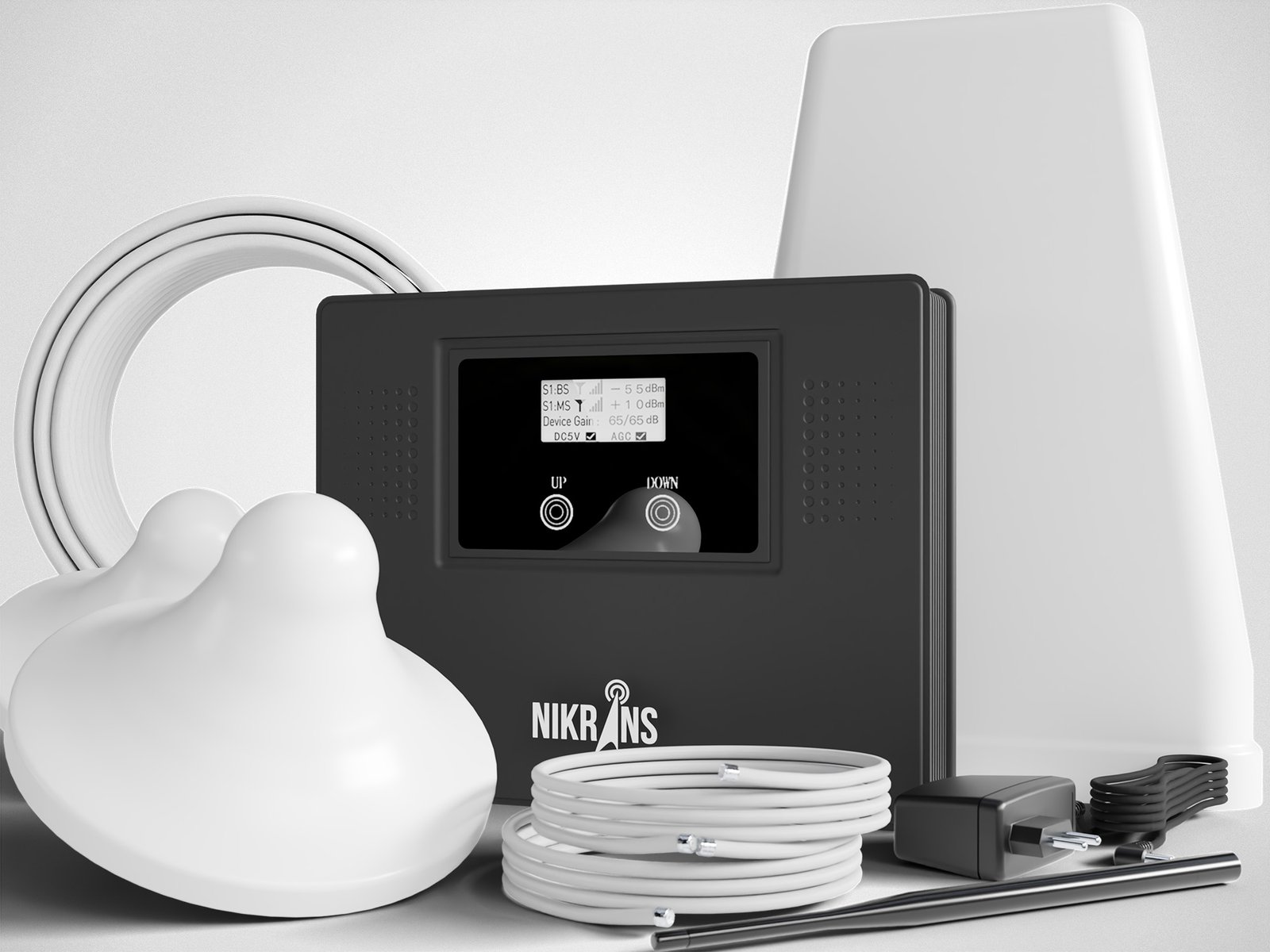

Kit contents

LCD-1000GDW tri band booster,

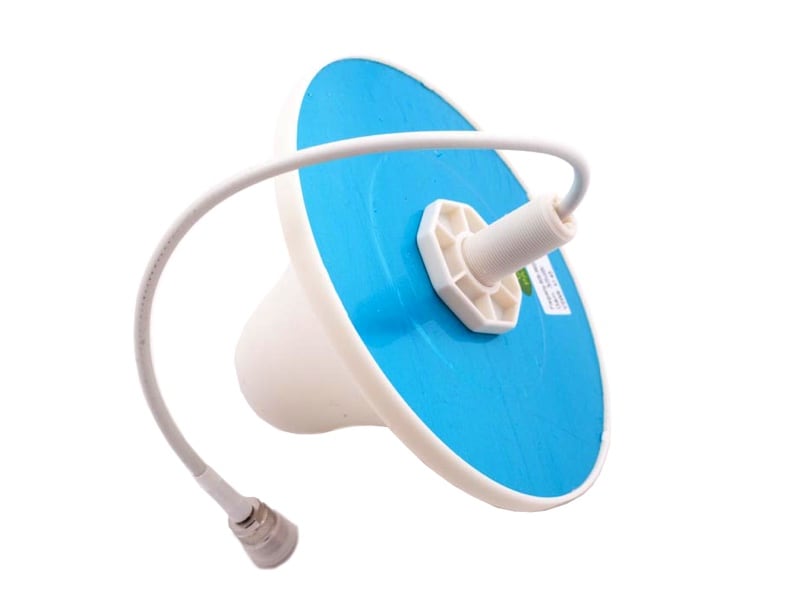

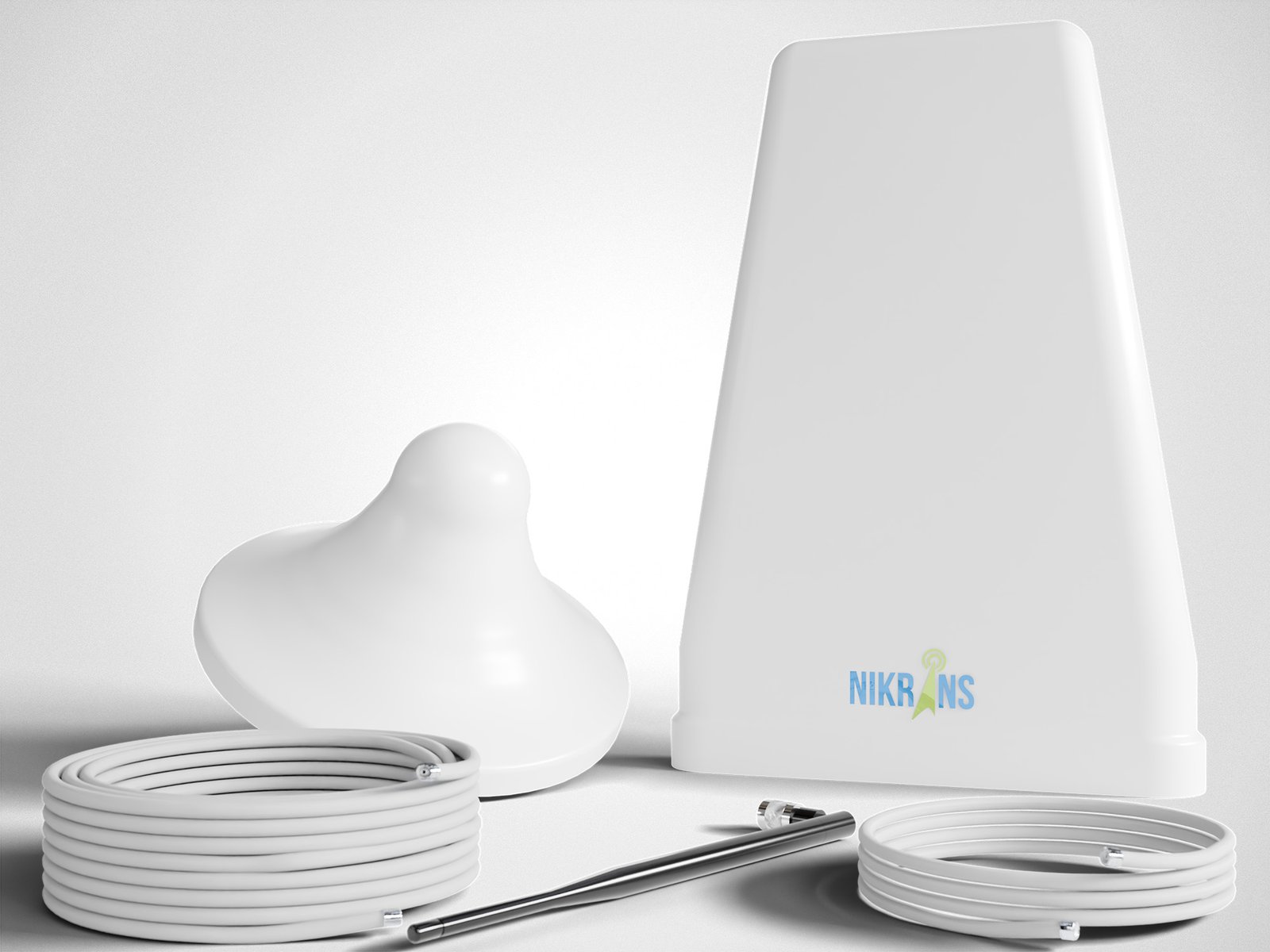

2 indoor ceiling antennas + 5m and 10m cables,

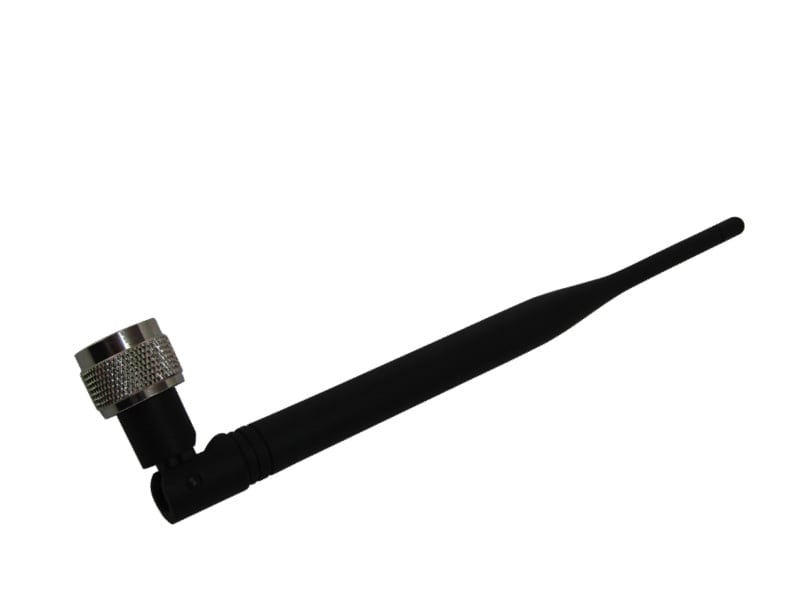

whip antenna,

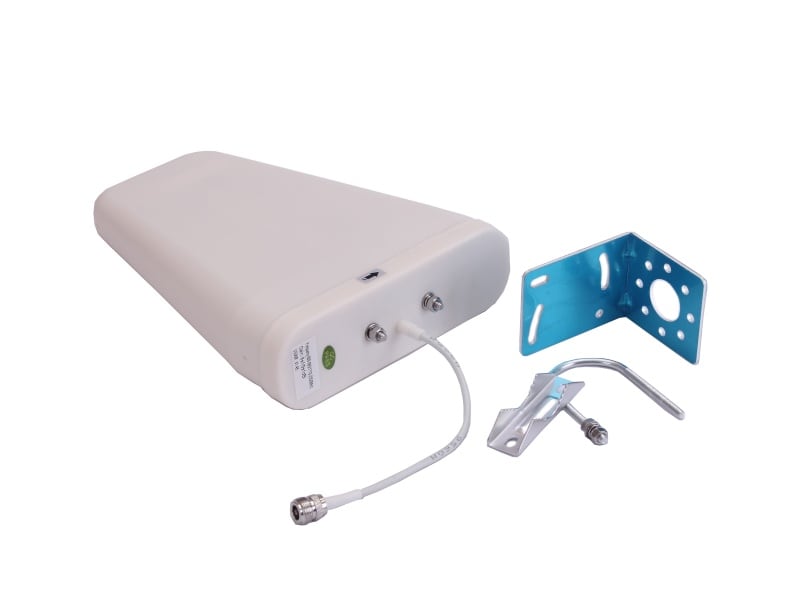

outdoor antenna + 20m cable,
power supply,
manual

Need additional accessories?

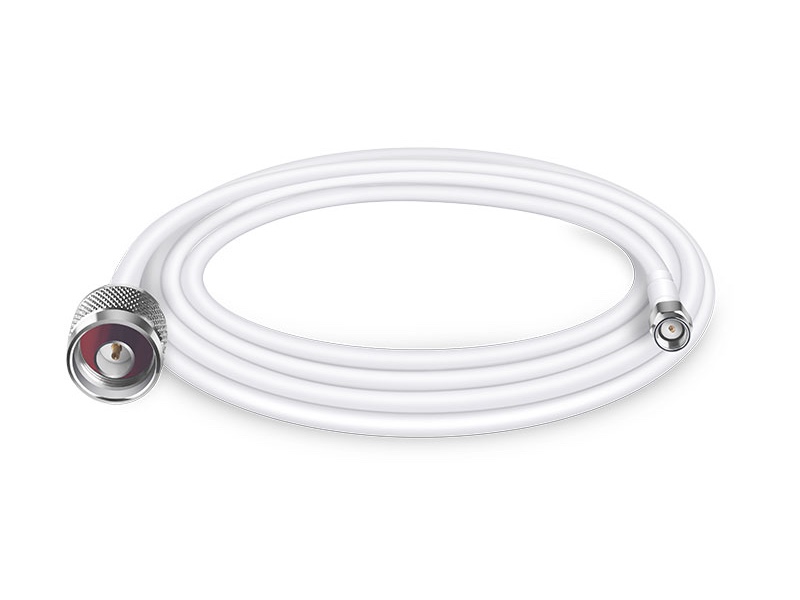

Indoor cable:

Standard kit +17 ft - £10

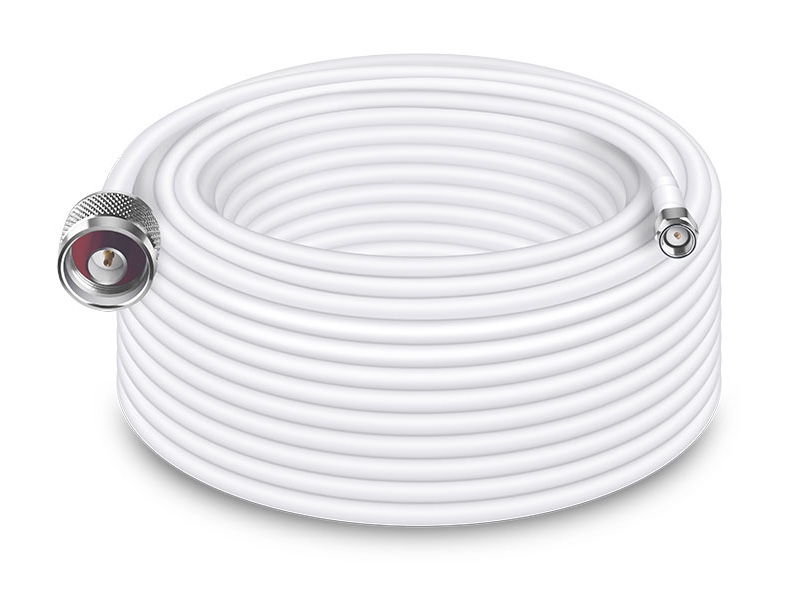

Outdoor cable:

Standard kit +17 ft - £10 +33 ft - £20

Lightning protection:

Not included included - £30

Shipping (3-7 business days) to United Kingdom

FREE

Total: £550

No registration required

5-step pre-delivery check
30-DAY return policy
3-YEAR warranty & service
Secure payments

LCD-1000GDW
£550

Compatible with operators in the UK and Worldwide

For more than 10 years, our boosters have been helping people in the UK, European Union, Asia, and Africa to successfully solve their mobile signal issues. We are doing our best to follow all the latest tech trends to meet the demands of users in different regions. If you want to choose the best model for you, just contact us and we will help to find a booster that will be compatible with operators in your country!

Choose the most convenient way to communicate with our experts.

Chat with us or Send us a message

Overview

If you are looking for a powerful cell signal booster for a large private house, office building, hotel, shopping mall or some other facilities, LCD-1000GDW with a coverage area of 1000 m² (10760 ft²) can become the best choice for you.

This tri band signal booster is able to strengthen mobile signals transmitted at three frequency bands simultaneously. LCD-1000GDW is designed to work at 900, 1800 and 2100 MHz which makes it possible to use it when it is necessary to improve GSM, 3G and 4G/LTE network signals. The majority of carriers in Europe and other regions use exactly these frequencies to provide their voice and data exchange services.

LCD-1000GDW has a wide range of useful features that make your interaction with this device extremely easy and clear:

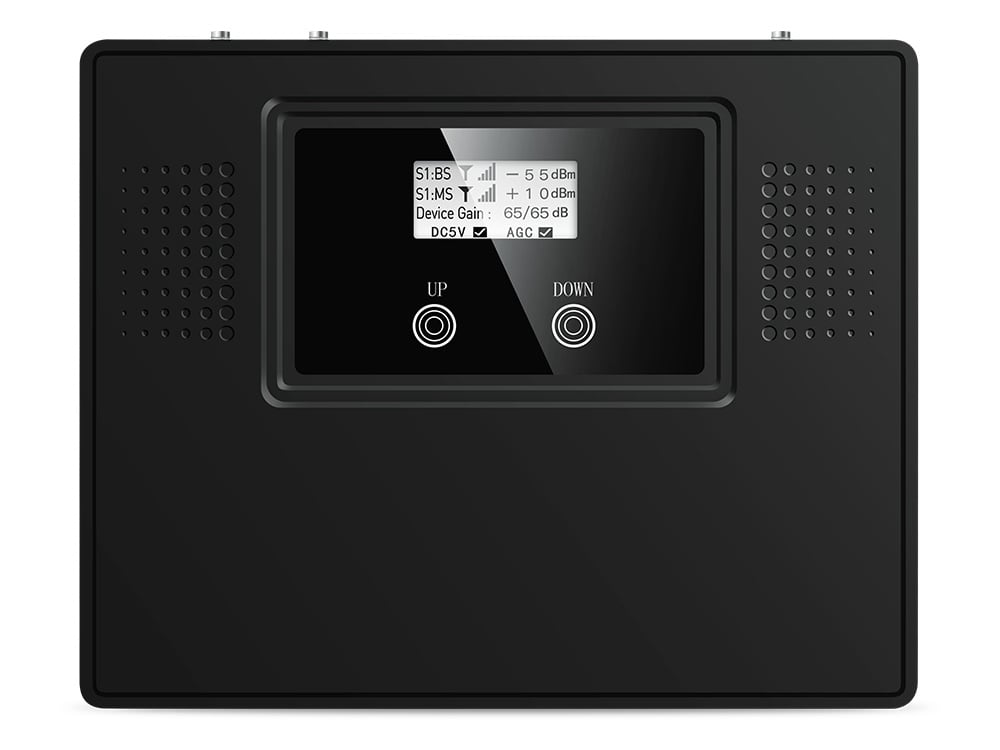

LCD display is intended for showing installation tips, error notifications and other useful data.
Sleep regime is switched on when the booster is not used, it means when no devices are connected to it. It helps to save energy and, consequently, your expenses on power.
In-built control function lets the device automatically adjust gains in accordance with the power of the incoming signal.

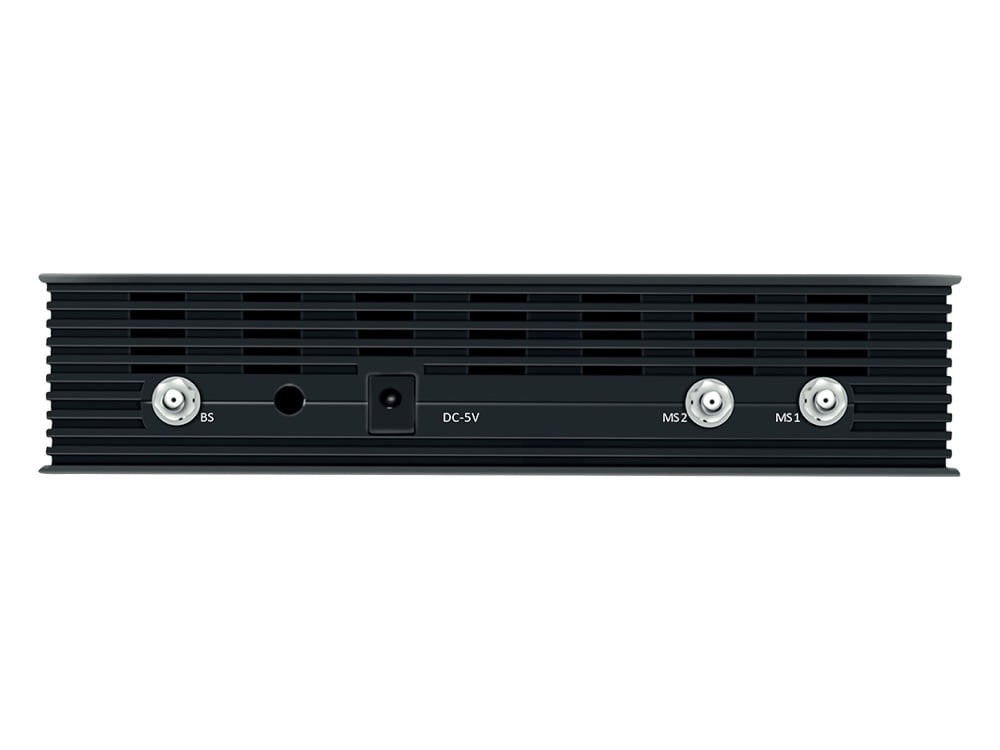

Moreover, LCD-1000GDW has two ports for switching two inside antennas simultaneously. With such a feature you do not need to buy and install splitters or other additional accessories when you want to ensure powerful signal across an extended area.

Even if you have never such a device before, following the installation recommendations provided in our manual and tips displayed on the LCD screen you will manage to install your amplifier yourself. And it will take no longer than 20 minutes.

You can leave all your worries about safety and quality of your device aside, these characteristics of Nikrans LCD-1000GDW are proved by CE and RoHS certificates.

Specification

Coverage: 10800 ft²

Up-link freq: 890-915MHz, 1710-1785MHz, 1920-1980MHz

Down-link freq: 935-960MHz, 1805-1880MHz, 2110-2170MHz

Up-link Gain: 65 dB

Down-link Gain: 70 dB

Power Output: 20 dBm

Working t °C: -25/+55 °C

IP-Code: IP40

Humidity: 5 - 95%

Size (mm): 204*164*44mm

Booster Weight: 1.2 kg

Energy Consumption: 0.03 kW/h

Power supply: Input AC90~264V,output DC5V/2A

Model Year: 2023

Download Manual Download Datasheet

How it works

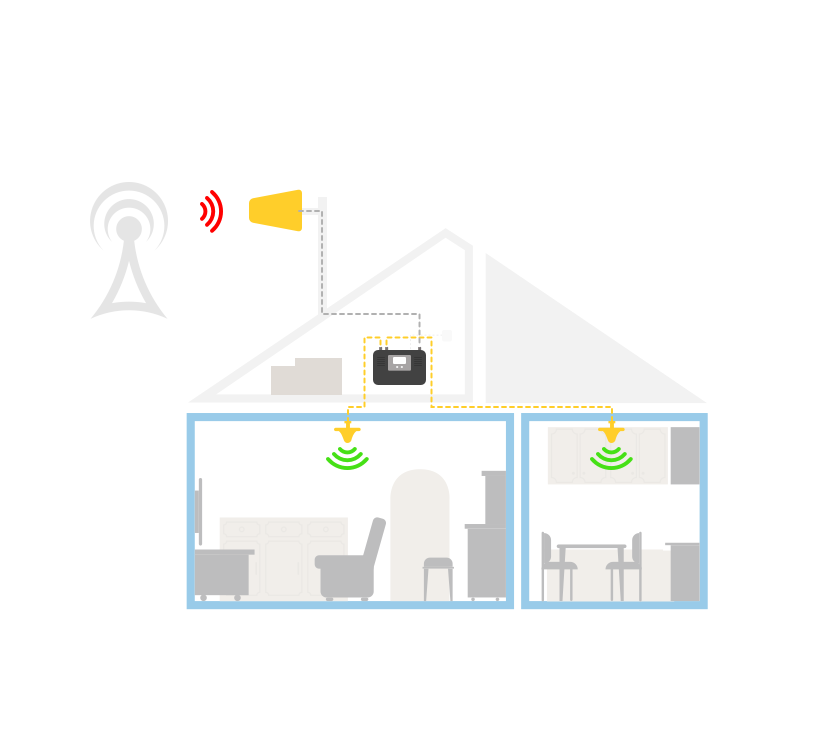

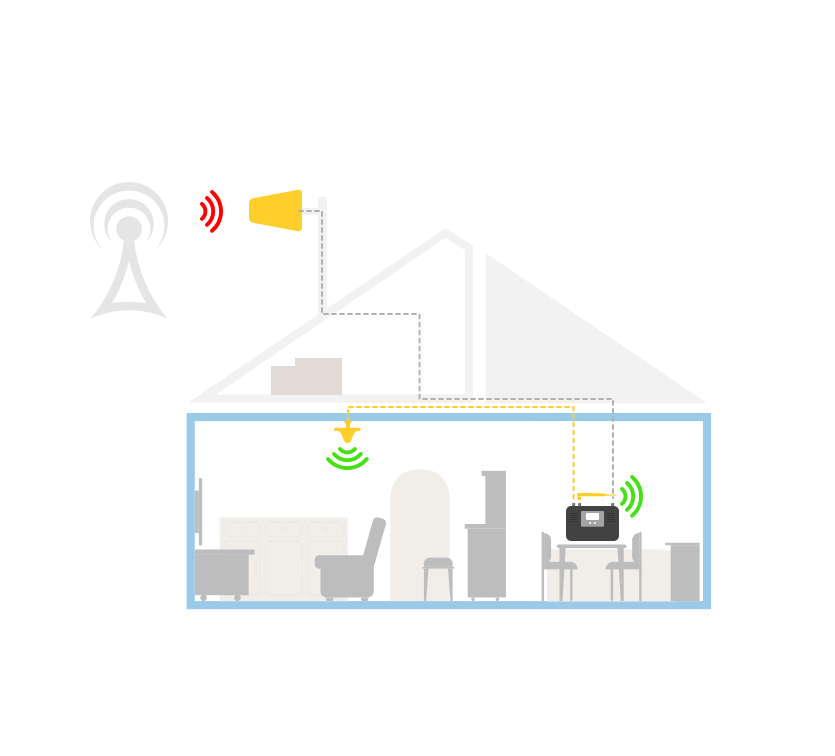

The Nikrans LCD-1000GDW triband amplifier comes in a kit that contains all the necessary components for the installation of the amplifier system. Before mounting LCD-1000GDW we recommend that you read the manual carefully to avoid common mistakes and make the process as easy and fast as possible. The outdoor antenna is mounted outside the building at a point with an incoming signal of normal quality (usually on the roof, in the attic, or outside the window).

Additionally, the kit includes 2 indoor ceiling antennas that will cover at least 2 floors. But please note that the model supports up to 4 antennas, so you can buy 2 more antennas if there is such a need. And most importantly, the installation of this GSM 3G mobile amplifier requires no technical knowledge and takes only about 30 minutes.

In case you are searching for a similar device compatible with the US networks, check out LCD-13K-CPA cell signal booster.

Kit

Tri Band Mobile Signal Booster for Office LCD-1000GDWB

Customer Reviews

Leave a review

Email *

Name *

Rate your experience with us *

Describe the pros and cons of your experience *

Upload image

Darlene Pritchard
United Kingdom
Verified Buyer

07-03-2023

Good solution for my house with the Nikrans Tri Band Mobile Signal Booster LCD-1000GDW

I'm from England and I recently purchased the Tri Band Mobile Signal Booster LCD-1000GDW from mobile-signal-boosters.shop.

I own a cottage in a remote area with very limited cell phone signal - no bars at all, making it almost impossible to communicate with the outside world using my cell phone.

However, after setting up this signal booster and directing it towards the nearest tower, I can now receive the maximum number of bars on most days. I can easily send and receive text messages, emails and make phone calls, which is a huge relief. Although, the signal isn't always strong enough to hold Zoom calls for an extended period of time, but it still allows me to watch Zoom meetings without any issues.

Before purchasing, I highly recommend downloading apps such as Opensignal and FindTower to help locate the nearest cell phone tower. Also, be prepared to take the time and effort to install the booster and direct the antennas towards the best direction. The photo shows a set with an external antenna Outdoor Wide Band Yagi NS-LPDA-12D and a low-loss cable.

Overall, the Tri Band Mobile Signal Booster LCD-1000GDW has been a great investment for me. It has drastically improved the signal quality in my remote area, and I highly recommend it to anyone who is struggling with poor signal reception.
